Injection Molded Plastic Functional Part Project

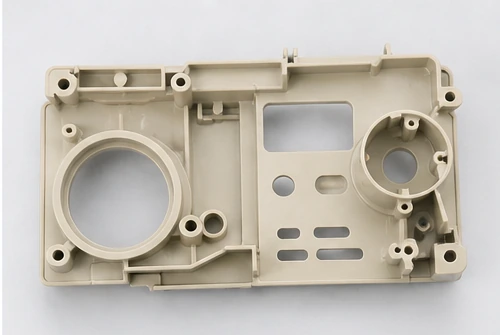

This project focused on a custom injection molded plastic functional part used in an assembly application. The customer needed a plastic component with stable dimensions, suitable material performance, and consistent production quality.
Project Background
The part was designed for functional use rather than simple appearance decoration. It needed to match with other components, maintain dimensional stability, and support repeated use in the final product.
Customer Requirements
The customer required a plastic part that could meet the following needs:
– Stable dimensions
– Suitable material strength
– Good assembly fit
– Controlled appearance quality
– Reduced deformation and molding defects
– Consistent production performance
Manufacturing Process
The project process included drawing review, material evaluation, molding feasibility checking, mold trial, sample inspection, injection molding production, and final inspection before shipment.
Technical Focus
For this type of plastic part, key points usually include wall thickness, material shrinkage, gate position, ejection method, deformation control, and production consistency.
Quality Control

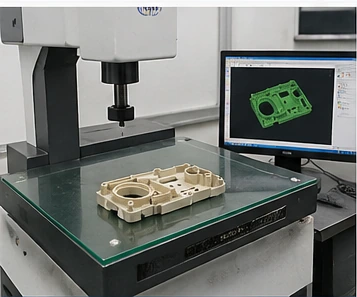

During production, the part was checked for appearance, key dimensions, assembly fit, flash, sink marks, warpage, and batch consistency.
Project Summary
This case shows how injection molding can be used to produce custom functional plastic components for B2B projects. With proper material selection, mold trial, and quality control, injection molded parts can support stable production and practical product assembly needs.
The project workflow is presented as compact engineering stages instead of one long vertical timeline.
The part drawing, 3D file, material requirement, tolerance needs, and assembly requirements were reviewed before production planning.
The plastic material, wall thickness, shrinkage behavior, gate location, and molding feasibility were evaluated according to the part structure.
Trial samples were produced and checked for appearance, dimensions, assembly fit, and basic functional performance.
After sample confirmation, the part moved into injection molding production with attention to molding stability and batch consistency.

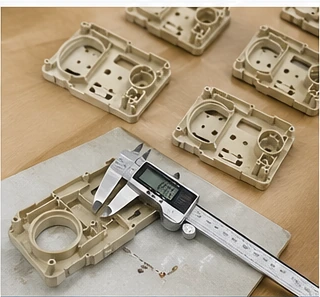

Finished parts were inspected before shipment based on appearance, key dimensions, quantity, and confirmed project requirements.
Remove small burrs or sharp edges from molded plastic parts after production to improve appearance and assembly safety.
Basic assembly support can be provided when the plastic part needs to fit with related components or fasteners.
Check visible surface quality, color consistency, flash, sink marks, deformation, and other molding-related appearance issues.

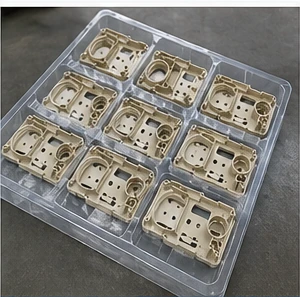

Pack finished plastic parts with protective bags, trays, foam, or cartons based on shipment and customer requirements.
The main challenge was controlling part deformation, shrinkage, and dimensional consistency during injection molding. The part needed to fit with related components, so wall thickness, gate position, ejection method, and molding conditions had to be evaluated carefully to reduce flash, sink marks, warpage, and assembly issues.
Three project images are shown in each desktop view. Use the arrows to browse the complete gallery.
Important material, tooling, manufacturing and application information presented as clear result cards.
Send your CAD files, material requirements, target quantity and quality expectations. Yinuomold will review manufacturability and recommend a practical production route.
